Products

FROM CONCEPT TO COMPLETION

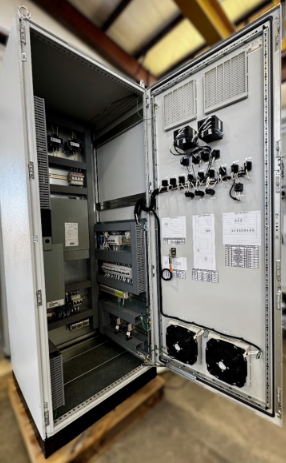

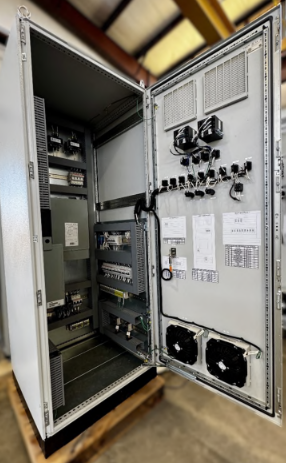

PANELBOARDS

Read Information

  • Motor control/starters designed to be explosion proof/flameproof. Supports low, medium, and high voltages.
  • Superior development and design, with customizable programming options for whatever platform is currently being utilized
  • MCC and VFD Modeling, fabrication, and installation
  • Support and services including Hazardous Area Certification, CE Marking, Maritime Certification, 24/7 Field Service and Support for both domestic and international

View Datasheet

INCREASED SAFETY (Ex e) ENCLOSURES

Read Information

  • Designed to provide a safe option for housing components in hazardous areas
  • At request, we can customize and modify enclosures to meet users needs

View Datasheet

TERMINAL BOXES

Read Information

  • Enclosure sizes are built to customer requirements and desired voltage
  • High quality and standards designed and developed

View Datasheet

HIGH VOLTAGE ENCLOSURES

Read Information

  • Designed to provide an option for hazardous area termination enclosures and junction boxes, providing safe power distribution up to 45kV

View Datasheet

DIGITAL CHARTING SYSTEMS & MICRO CHART

Read Information

  • All models can be customized to your specifications, for both mobile and fixed applications
  • Chart display and reports with real-time monitoring, personalization of displayed reports, predictive pass/fail status
  • Easy streamline calibration with customized alerts and calibration certificate information that can be stored internally
  • Protected data that prevents user manipulation and quality assurance, which includes password protection administrative options, automated backups, test setup and validation
  • Customized interfacing solutions for PC/HMI/Tablet configurations; various sensor type of supports and data acquisition and data logging options. Braeden is also able to interface stand-alone software options with existing hardware

View Datasheet

AUTO-CHART & CONTROL SYSTEMS

Read Information

  • Automated testing and charting device functionality, critical equipment, high-reliability, and high-availability equipment and more
  • Autochart custom settings and capabilities with process build-up and stabilization routines
  • Autochart Integration into existing software for adding testing capabilities to existing systems
  • Display of data in HMI Interface
  • Run and record tests, start and stop tests, multiple test instances running simultaneously with the EChart

View Datasheet

CUSTOM ELECTRICAL ASSEMBLIES

  • Class Division- C1D1, C1D2 (North American)
  • Zone 1/2 Flameproof (Ex d)
  • Zone 1/2 Purged (Ex p)
  • Zone 1/2 Increased Safety (Ex e)
  • Design & Manufacturing

View Datasheet

PRESSURE TESTING SYSTEMS

ZONE 1 TRANSFORMERS

Read Information

  • Customized configuration to meet design needs
  • Design Documents provided with the builds
  • Enclosure sizes adjusted as needed per transformer
    size and end-user needs

View Datasheet
